PeerDB Streams for Kafka Quickstart Guide

​

Deploying PeerDB

We currently support deploying and testing PeerDB using our Docker Compose file.

Run the following commands in your terminal:

git clone --recursive https://github.com/PeerDB-io/peerdb.git
cd peerdb

# Run docker containers: peerdb-server, postgres as catalog, temporal.
# This might take a few minutes, so get a cup of coffee! :)
./run-peerdb.sh

That’s it! You now have PeerDB up and running on your machine, ready to query away!

​

Quickstart

​

Setup

This script reuses the PeerDB internal Postgres instance to setup two databases, which we can use to create two peers. It also creates some tables on both databases to use later in the quickstart. Run the following commands in your terminal:

curl -O https://peerdb-sample-data.s3.us-east-2.amazonaws.com/quickstart_prepare_peers.sh
chmod +x quickstart_prepare_peers.sh
./quickstart_prepare_peers.sh

​

Creating Peers

With PeerDB running, we can create our first peers.

Head over to localhost:3000 on your browser. This is the PeerDB Dashboard.

Clicking on Peers in the sidebar will take us to the Peers page.

​

Creating Source Postgres Peer

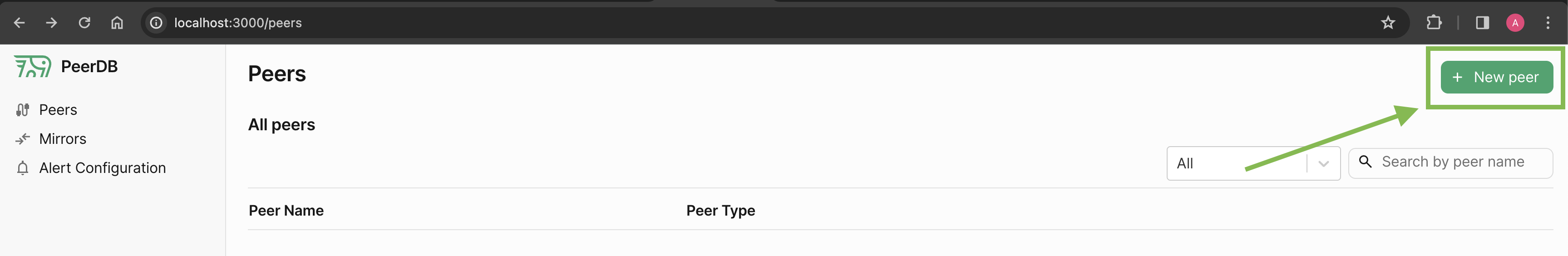

Let’s click on the Create Peer button at the top right to get started.

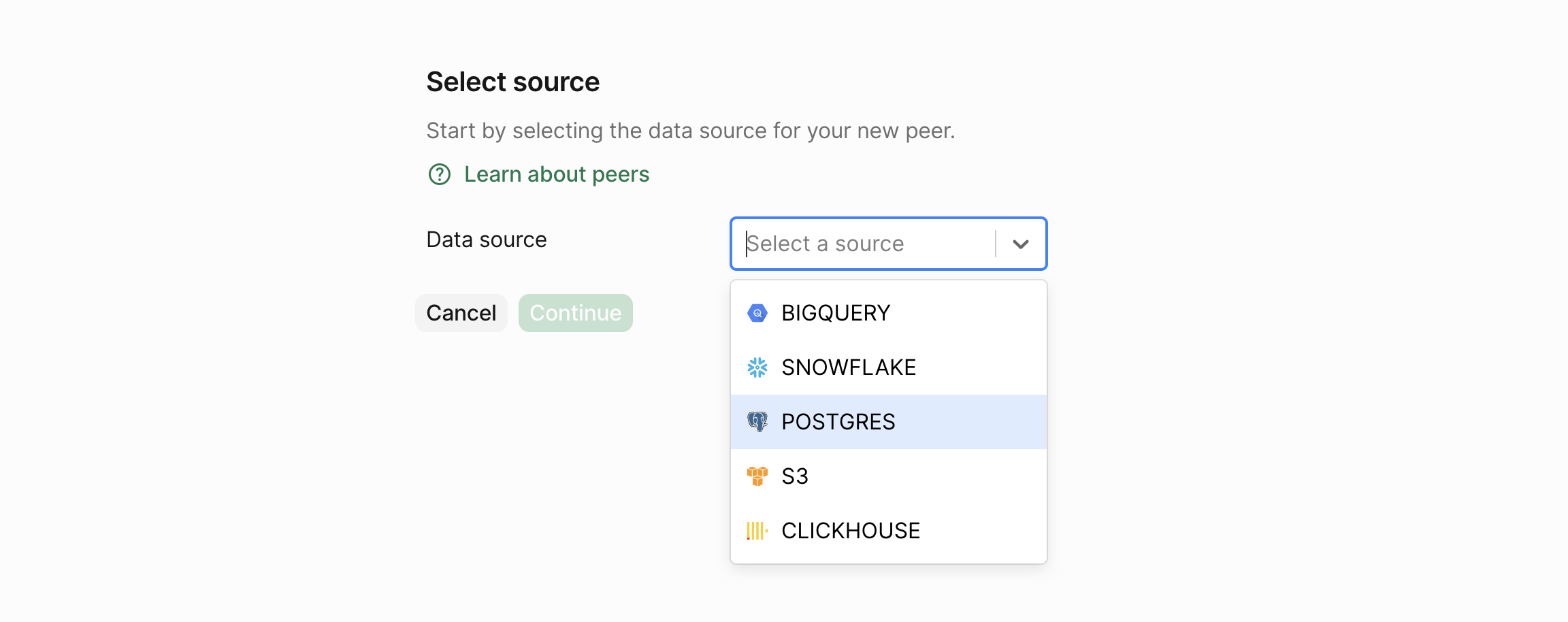

Now, we select the data store for which we wish to create a peer. Let’s select Postgres and click on the Continue button.

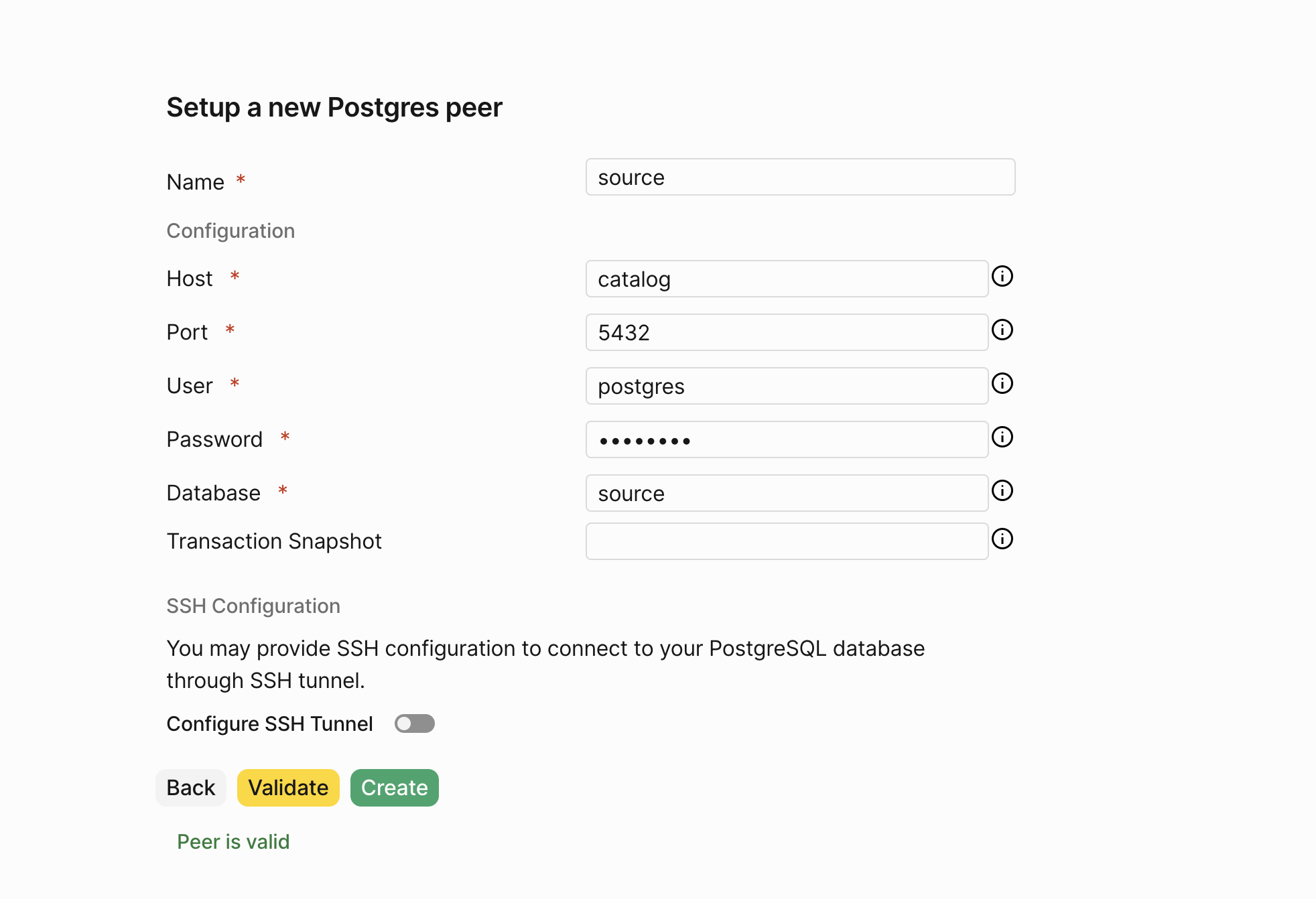

This takes to a form where we can fill in the details for the peer. Let’s fill in the details of our PostgreSQL peer.

Fill in the password as postgres.

PeerDB validates the connection details and if everything is correct, clicking on Validate should show a success message.

Finally, click on Create to create the peer.

We now have our source PostgreSQL peer ready.

​

Creating Target Kafka Peer

Let’s create the target Kafka peer.

First lets start a local Kafka (or Redpanda) instance.

mkdir redpanda-setup && cd redpanda-setup
curl -O https://docs.redpanda.com/redpanda-labs/docker-compose/_attachments/single-broker/docker-compose.yml
docker compose up -d

# connect to the peerdb_network network
docker network connect peerdb_network $(docker container ls -qf "name=redpanda-0")
docker network connect peerdb_network $(docker container ls -qf "name=redpanda-console")

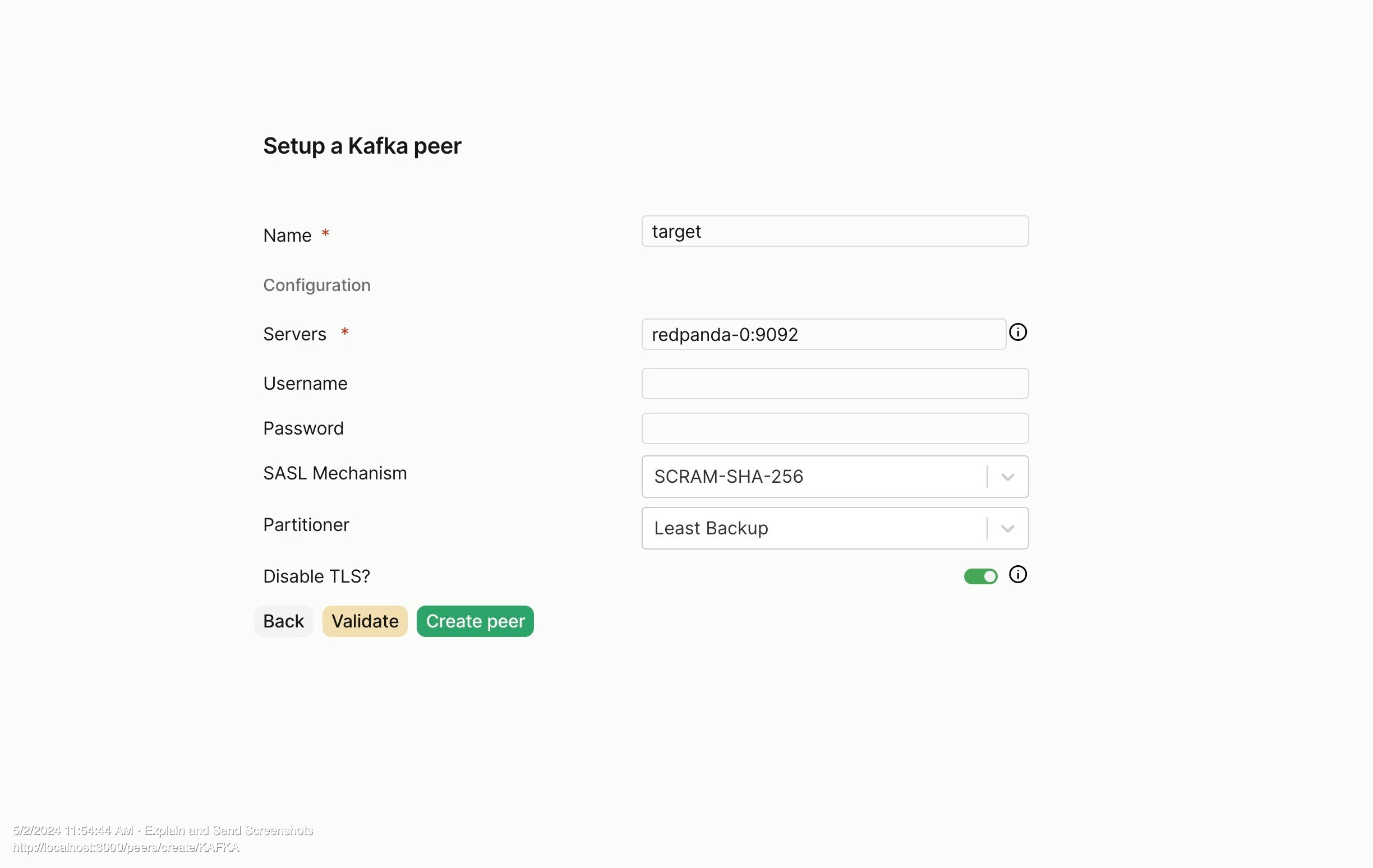

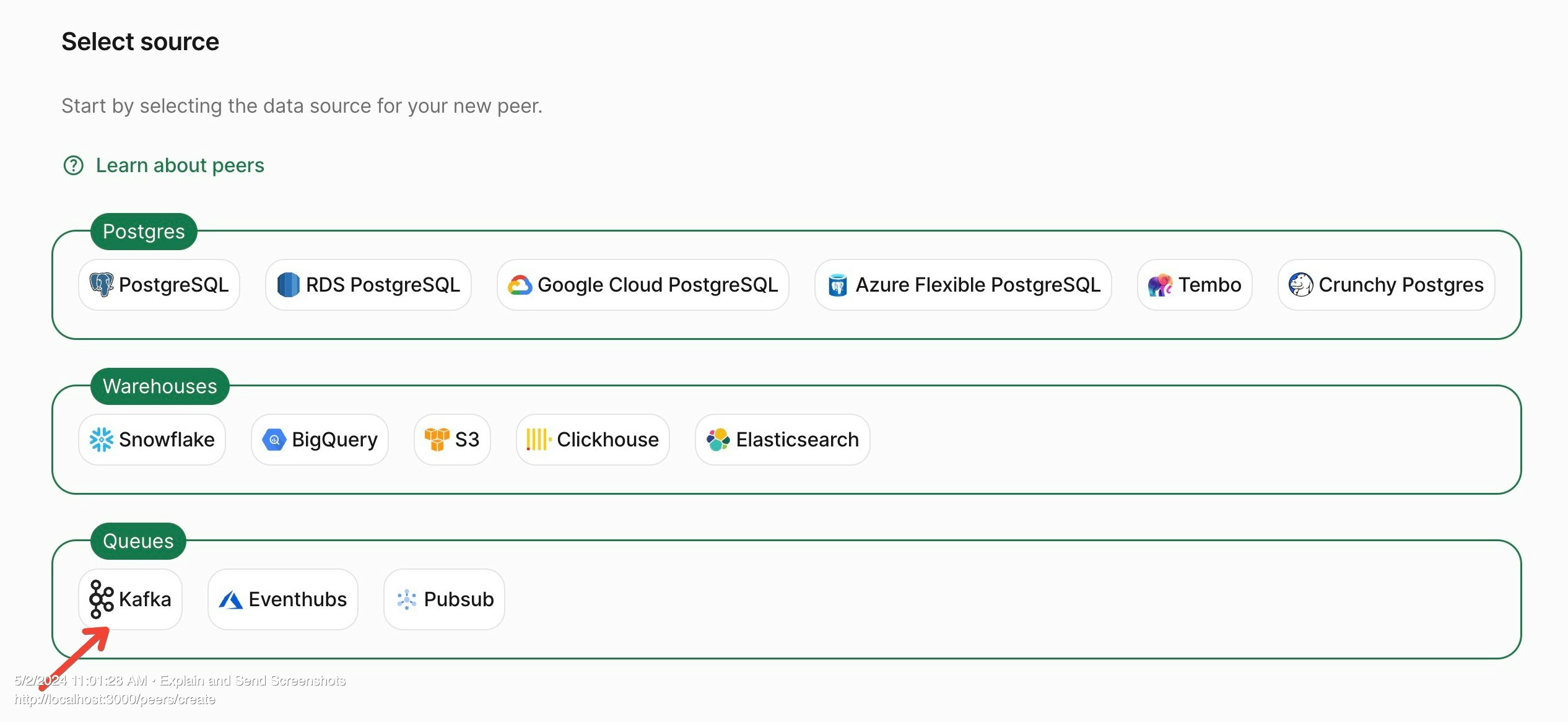

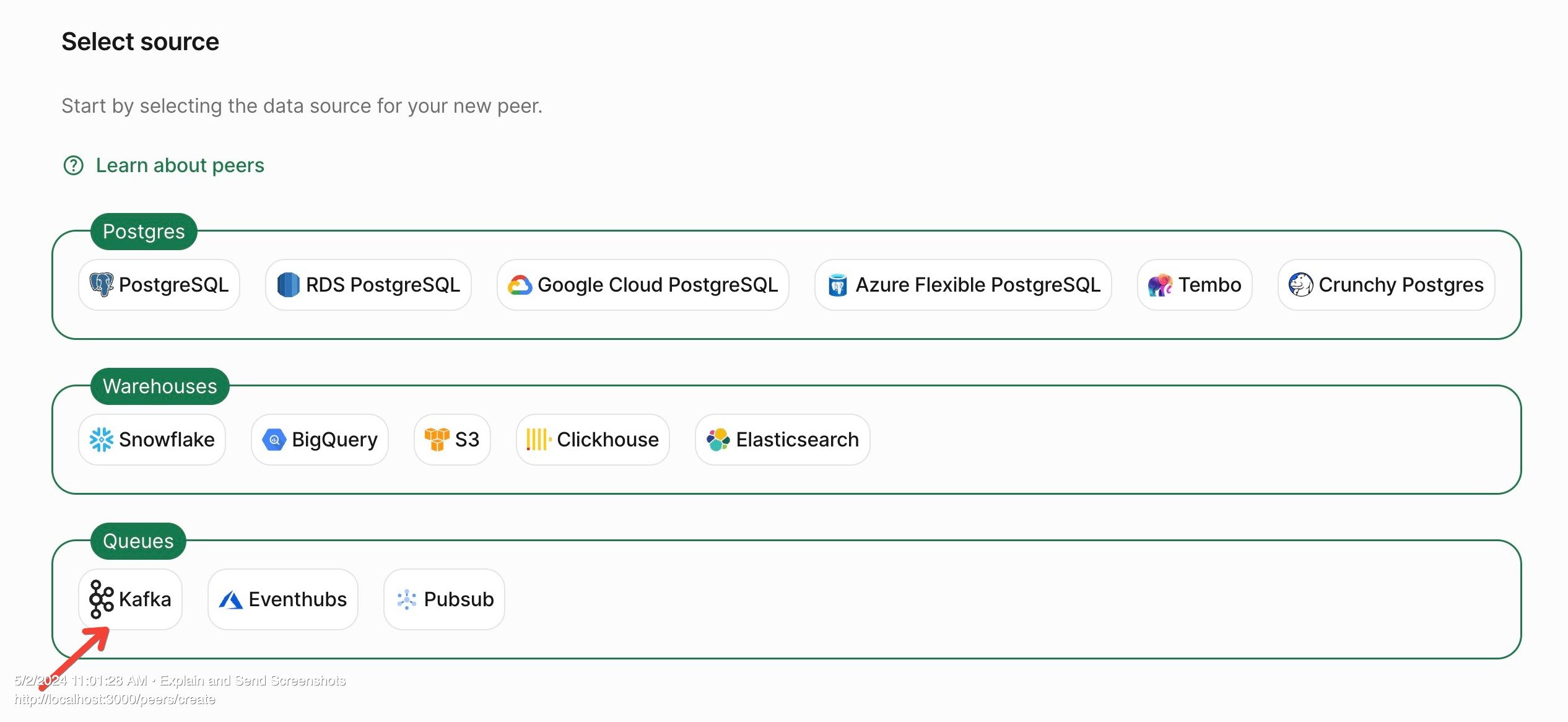

Once you go to the create peers page, select Kafka as the option.

Fill in the various fields:

• Name: target
• Servers: redpanda-0:9092
• SASL Mechanism: Scram SHA 256
• Partitioner: Least Backup
• Disable TLS: true

Then click the Create Peer button.

Clicking on Mirrors in the sidebar will take us to the Mirrors page.

​

Real-time CDC

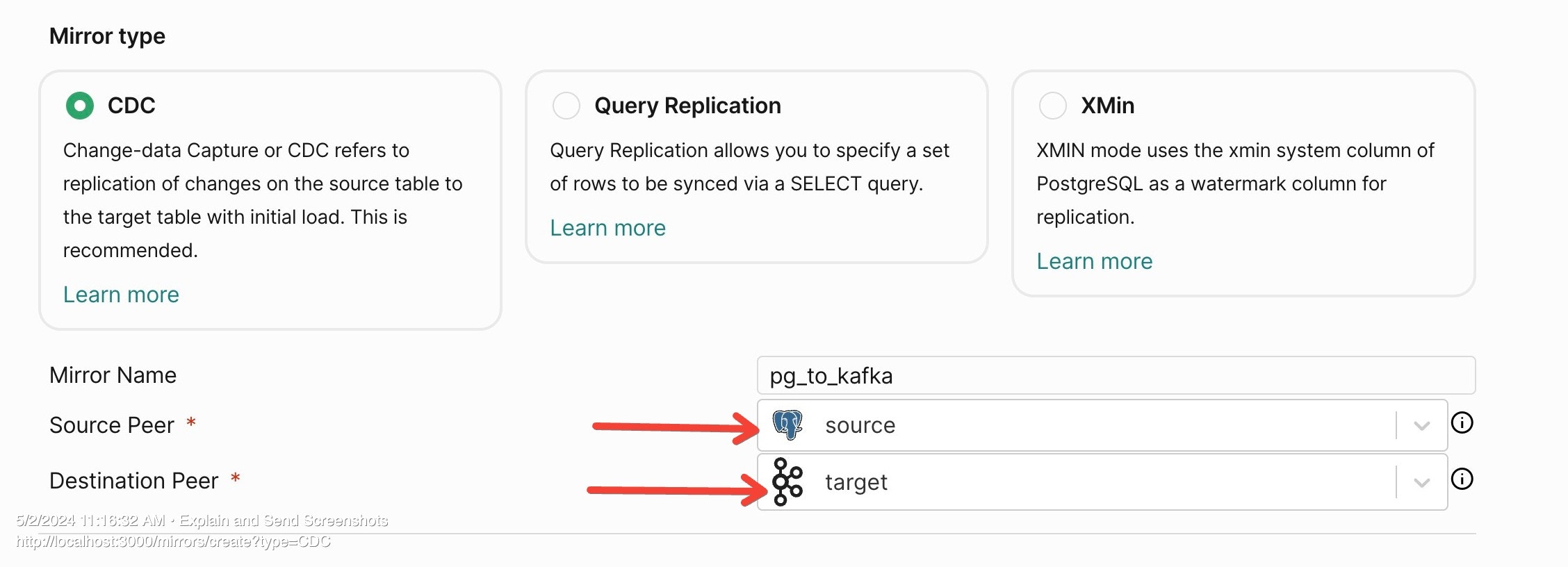

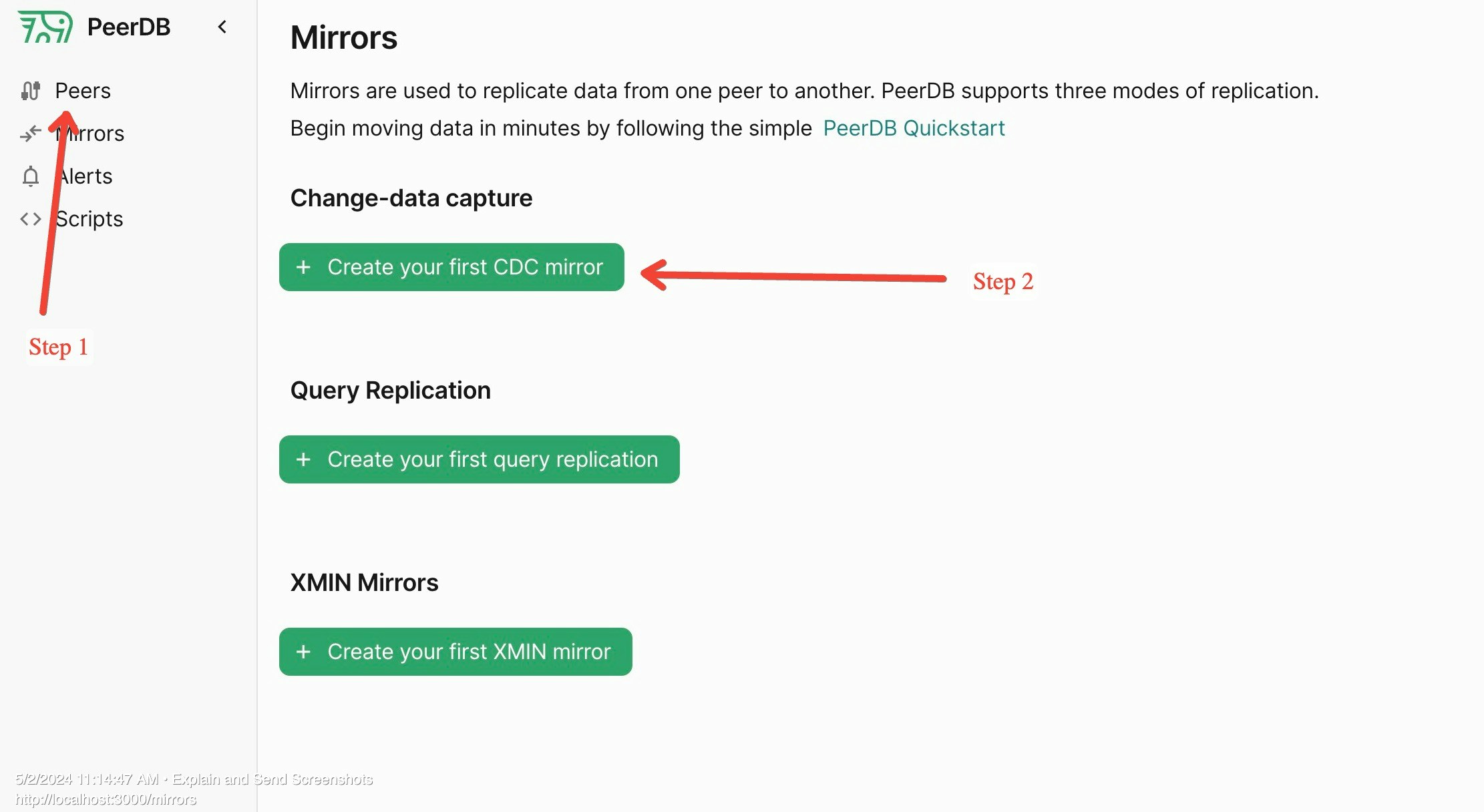

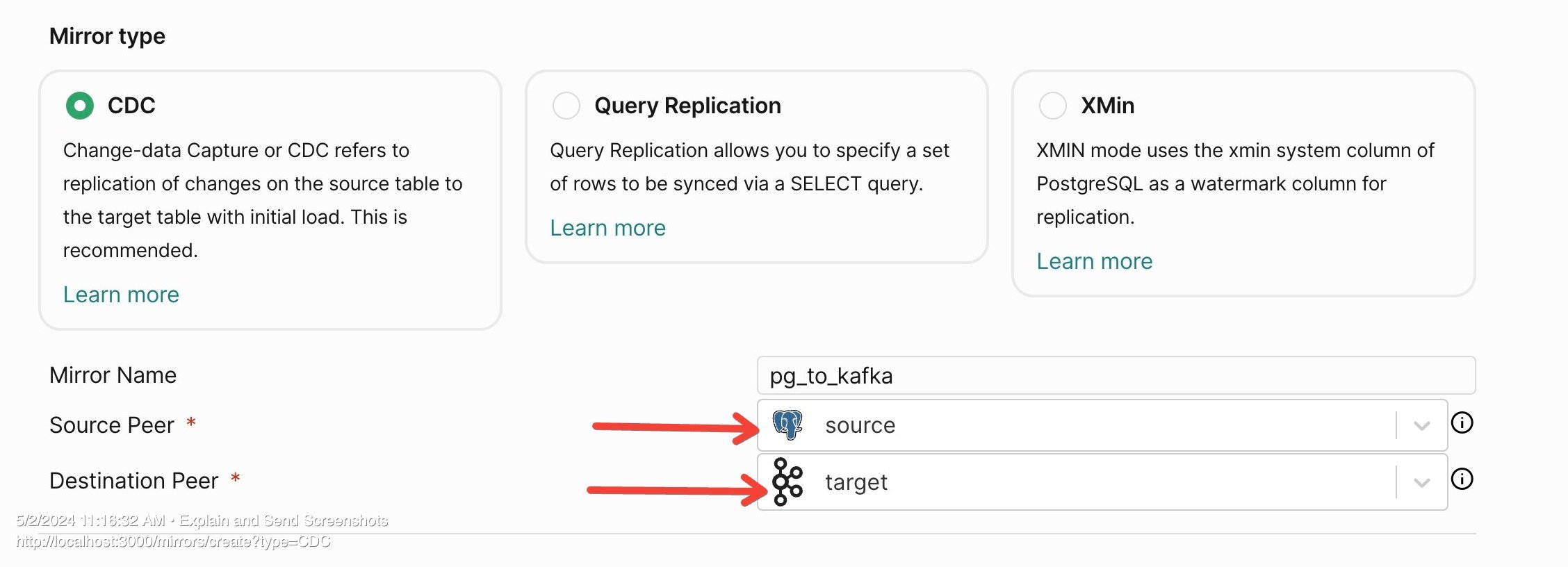

Lets start by creating a CDC mirror. In the side-bar click on Mirrors, and then CDC Mirror.

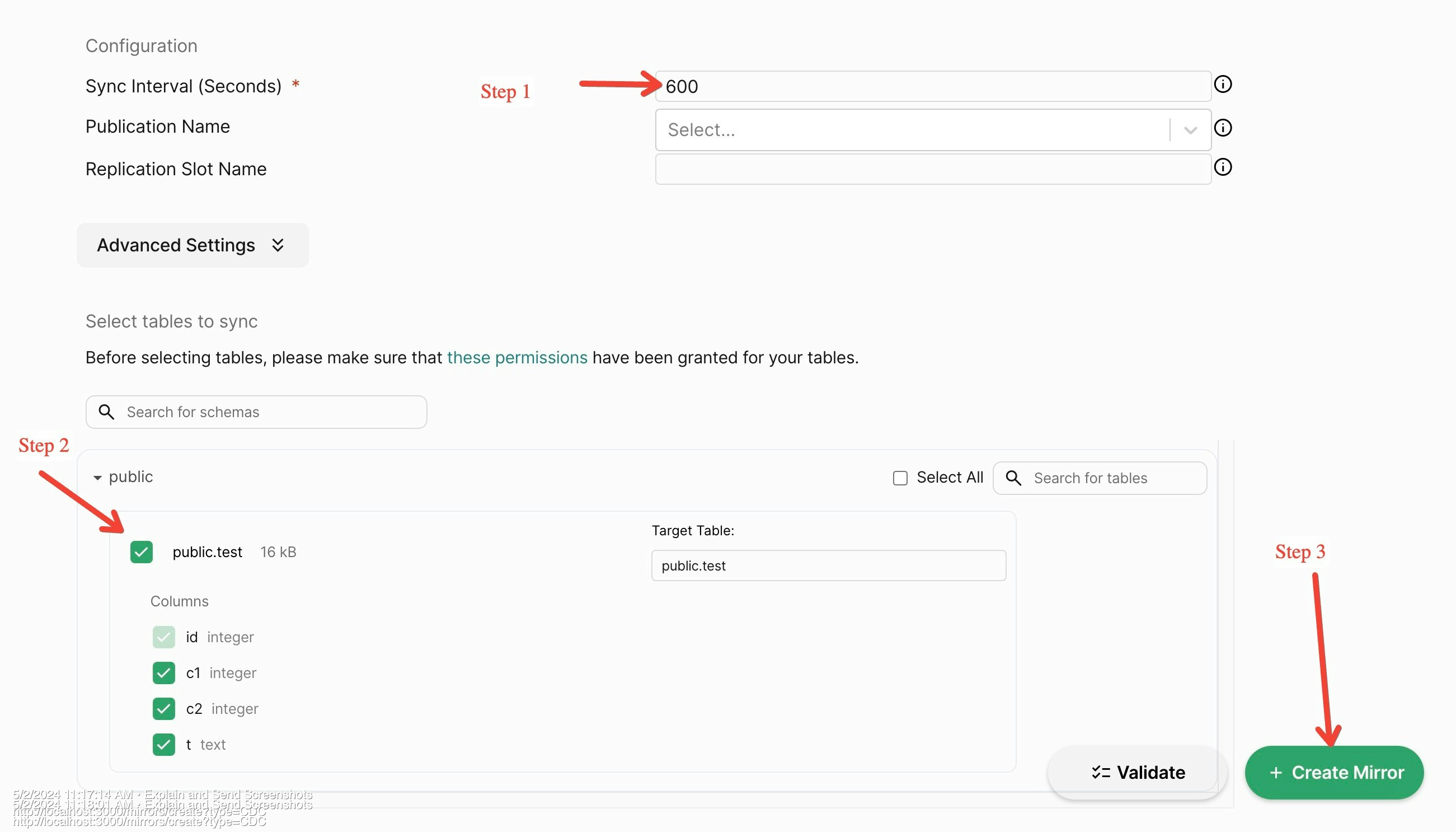

Scrolling down, we can see a section to a select the table on our source PostgreSQL peer to sync.

Let’s select the table we have ready - public.test. Now that we’ve filled in all the mirror details.

Let’s click on Create Mirror, which will validate to check if everything is set up correctly, much like we did when creating peers and then will create the mirror.

Connect to PeerDB via psql:

psql "port=9900 host=localhost password=peerdb"

And now we can run the below commands.

--- Verify that the source table has zero rows
SELECT id,c1,c2,t FROM source.public.test;

--- Insert a row into the source table
INSERT INTO source.public.test(c1, c2, t) VALUES(1, 2, 'oathbringer');

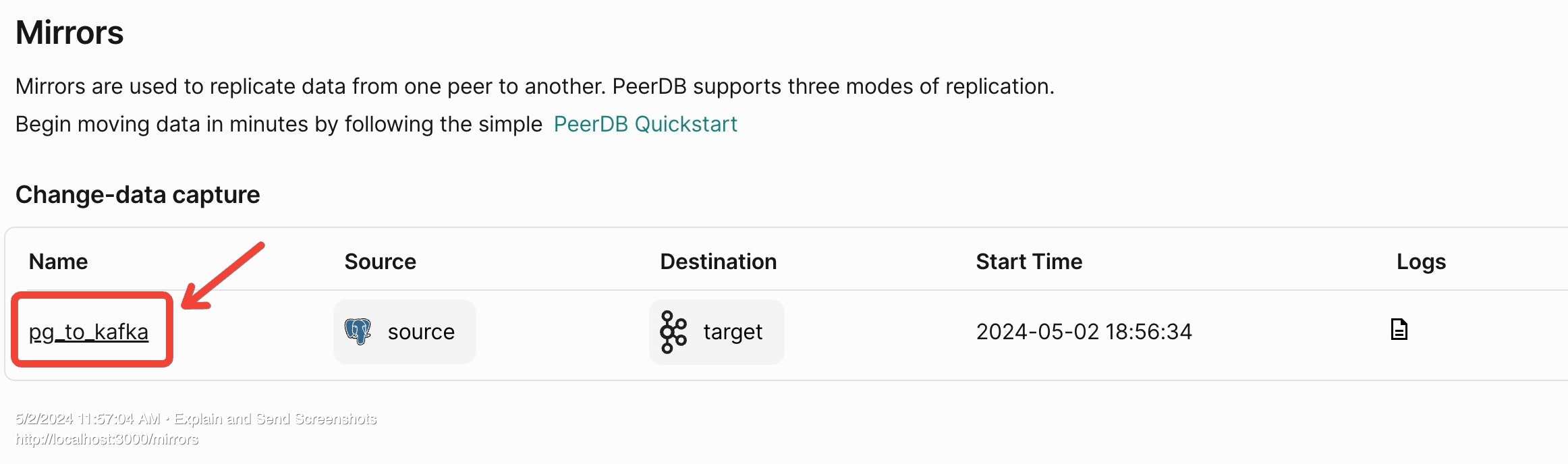

Within a minute, the row should be replicated to the target table. Let’s click the mirror link on the Mirrors page which we landed on after creating the mirror:

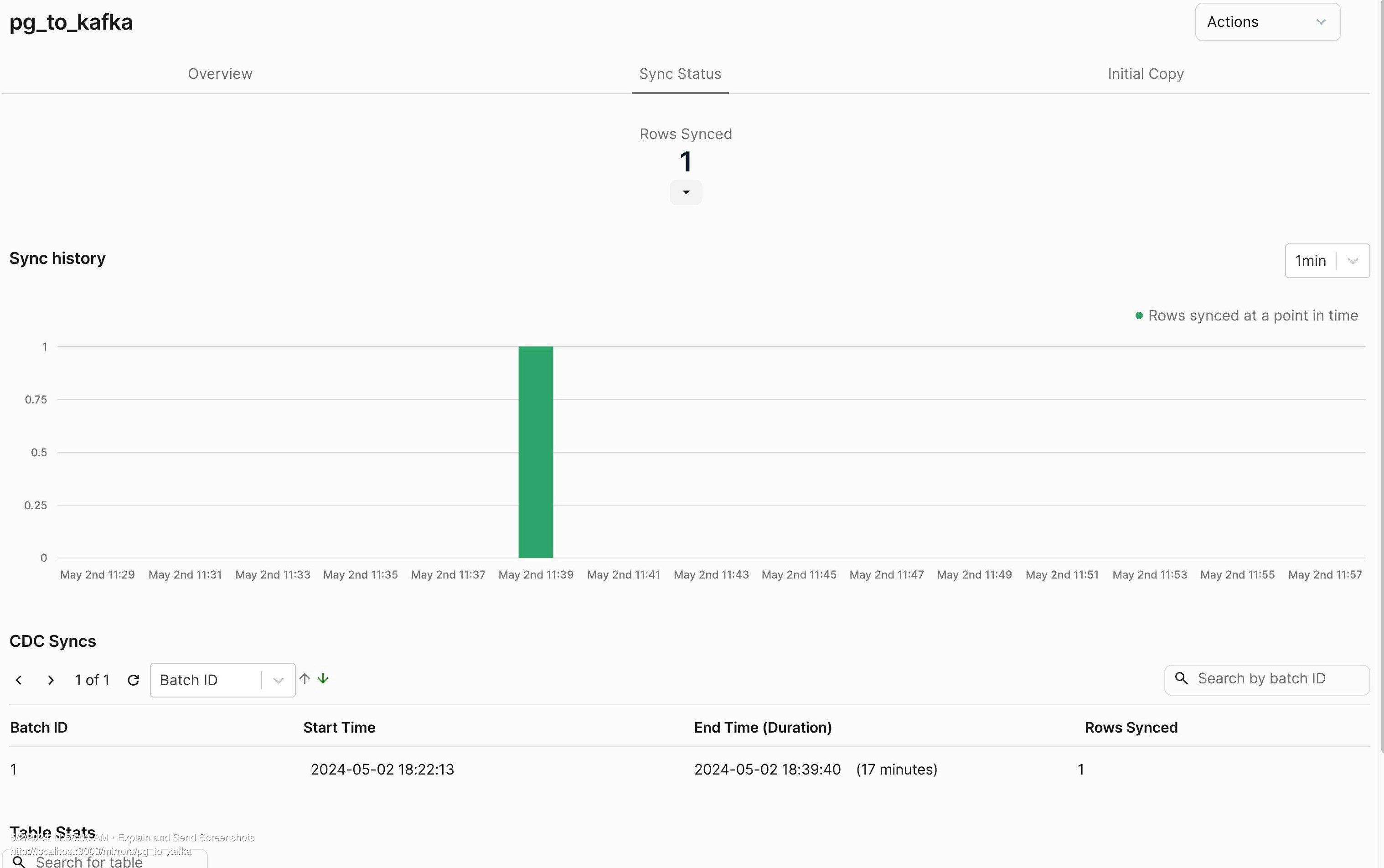

This takes to the Mirror Overview page. Let’s click on the Sync Status tab, where we can see the status of the mirror and the number of rows replicated:

We can see that the mirror has successfully replicated the row from the source to the target peer. Let’s verify this by querying the target topic.

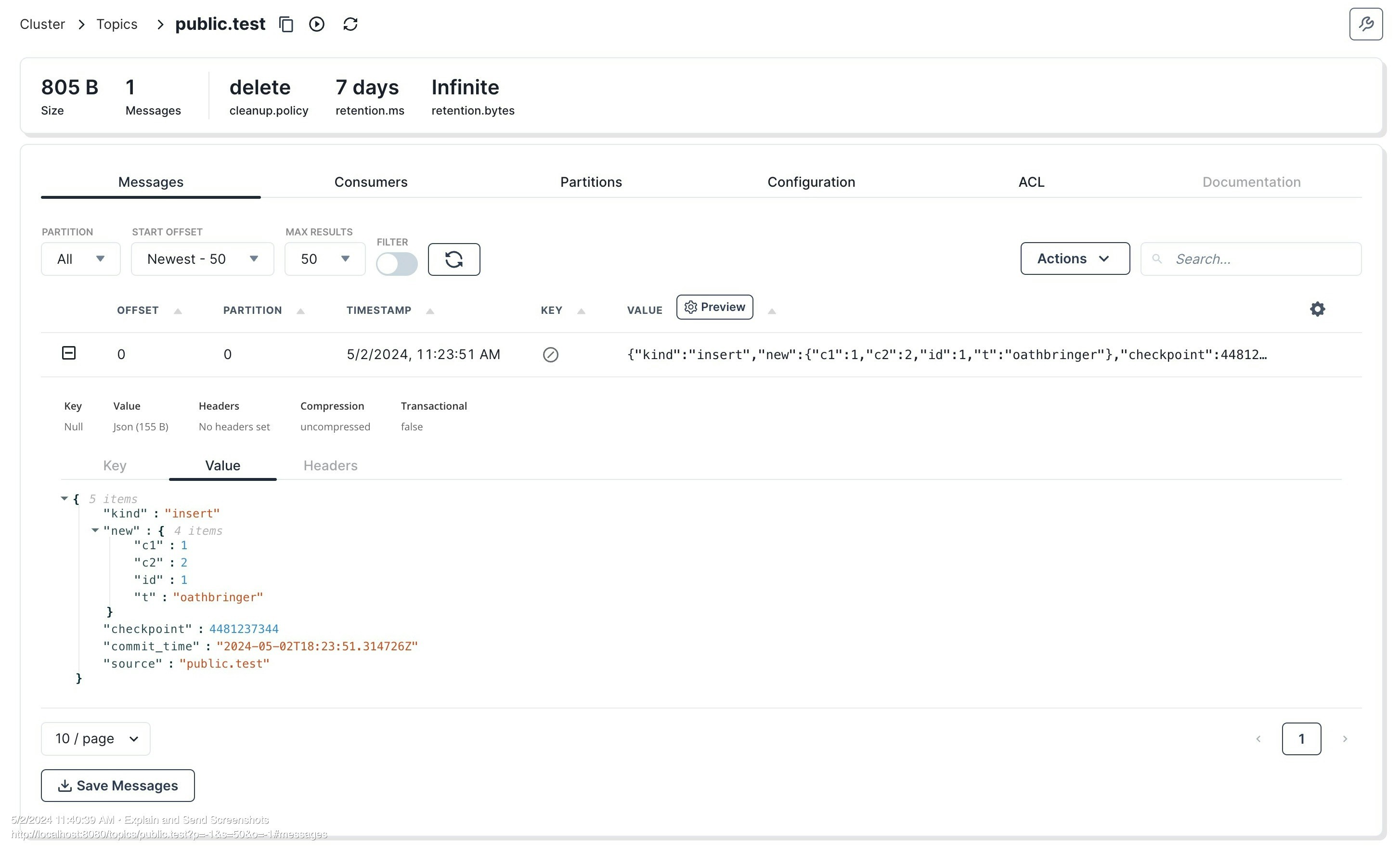

Head over to Redpanda Console, click on the public.test topic:

The above MIRROR takes care of replicating all future DML commands (INSERT, UPDATE, DELETE) from source to target.

​
