PeerDB uses Lua scripting for packaging messages for queues. In particular, Gopher Lua

Supported queues:

1. Kafka
2. PubSub
3. EventHubs

See examples for sample scripts

The script should define an onRecord function. Result may be a table instead of a string to specify partition key, metadata, etc. See queue specific pages for supported fields

If multiple return values are given, multiple records will be written

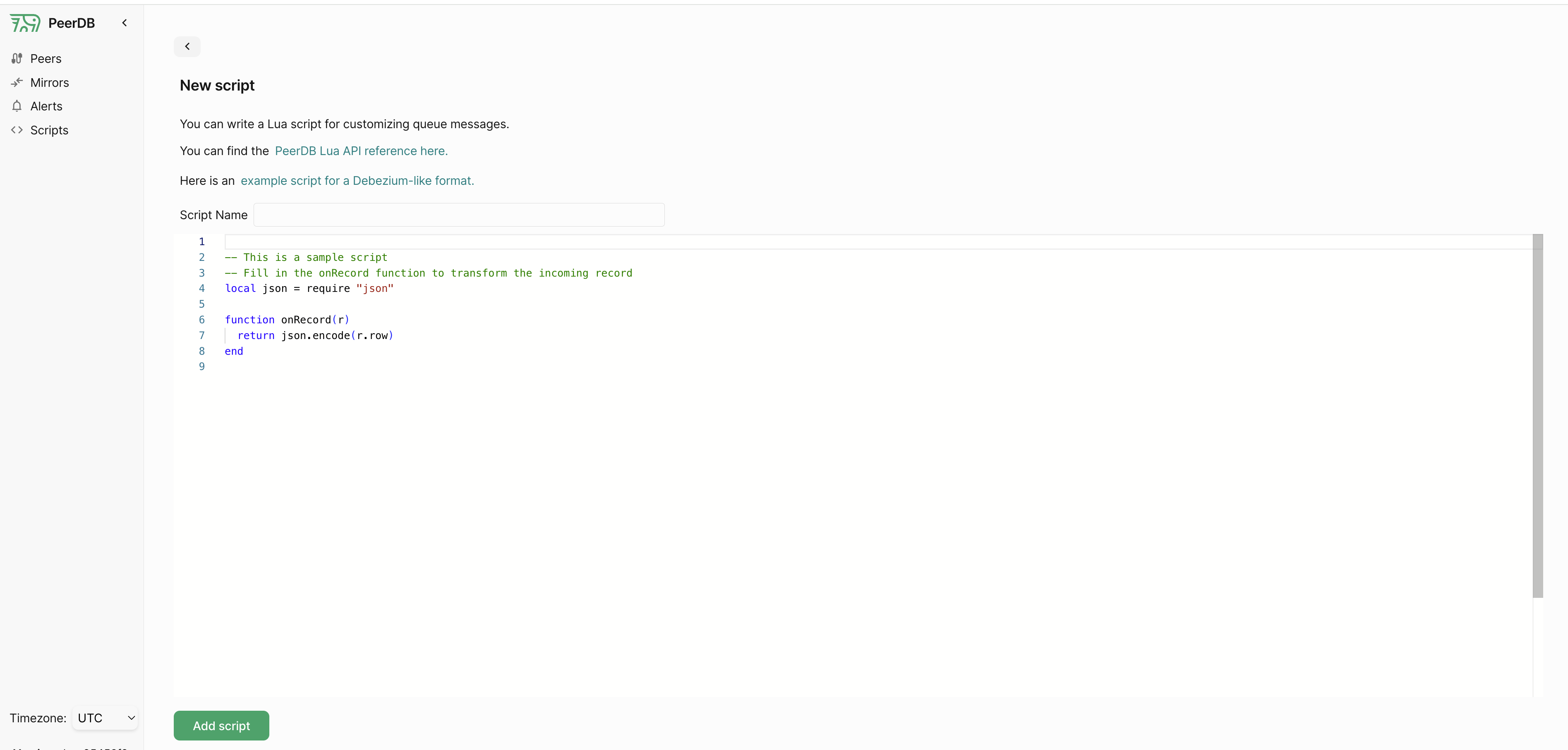

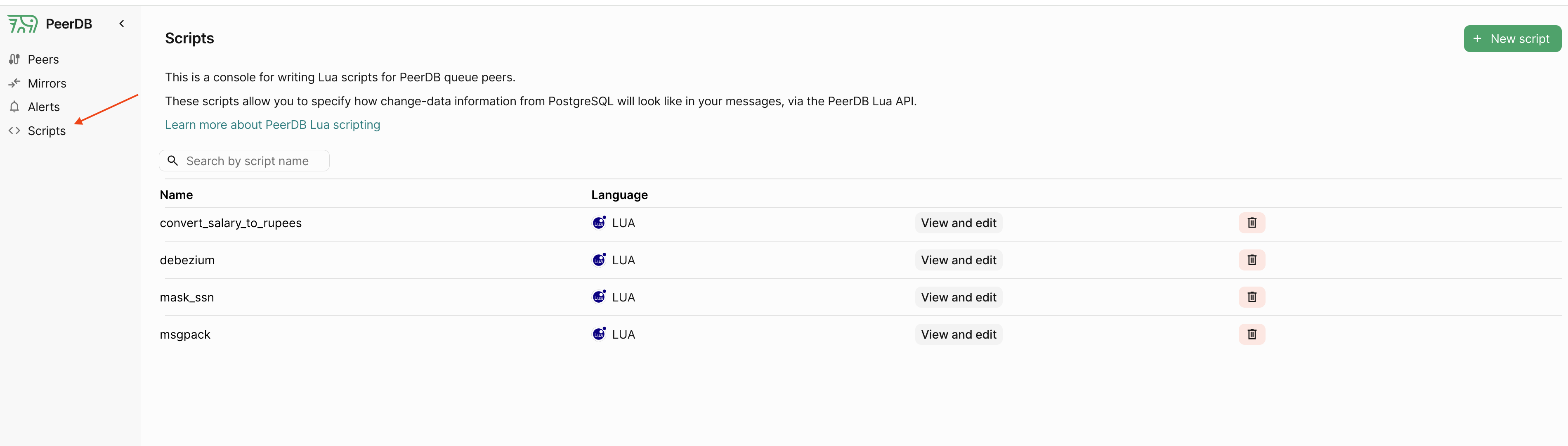

Scripts can be added & edited in UI:

​

peerdb functions

The set of functions in global peerdb table are:

​

RowColumns(row) table

Returns array of row’s column names

​

RowColumnKind(row, column) string

Returns underlying Kind of row column, see qvalue/kind.go for list of kinds

​

Now() [Time]

Returns current time as [Time]

​

UUID(string?) [UUID]

Returns random [UUID], or parses passed in string

​

Decimal(string | number)

Returns Decimal based on passed in value

​

type(any) string

Returns fmt.Sprintf("%T", value) on underlying value of UserData. Returns nil for other types

​

tostring(any) string

Returns fmt.Sprint(value) on underlying value of UserData. Returns nil for other types

​

types

PeerDB exposes records as UserData:

​

Record

Represents a CDC change

​

kind

One of insert, update, delete, or relation. You will likely want to ignore relation messages

​

row

Canonical row values of change. For update this is the new row. Keep in mind that Postgres does not send unchanged toast column values in CDC updates

​

old

Previous row values, nil for insert

​

new

New row values, nil for delete

​

checkpoint

LSN of CDC message

​

commit_time

CommitTime of record’s preceding BeginMessage

​

target

Destination table of record defined by mirror

​

source

Source table of record

​

unchanged_columns

Update records have a table mapping unchanged toast columns to true

​

Row

PeerDB row values which cannot be represented as Lua numbers or strings are wrapped in UserData. All of these types implement __tostring. Available types:

​

I64 / U64

Represents signed/unsigned 64 bit integers. Implements comparisons with each other & __tostring support. There are 3 conversion properties:

• i64 cast to [I64]
• u64 cast to [U64]
• float64 cast to lua number
• hi returns highest 32 bits as an unsigned number
• lo returns lowest 32 bits as an unsigned number

​

Time

Has properties for durations since Unix epoch. These are [I64] results, except unix which is a lua number

• unix_nano
• unix_micro
• unix_milli
• unix_second
• unix

& properties for datetime components as numbers:

• year
• month
• day
• yearday
• hour
• minute
• second
• nanosecond

​

UUID

Index with [0..16) to access bytes (first element at index 0)

​

BigInt

​

sign

1, 0, or -1 depending on sign of value

​

bytes

string of *big.Int Bytes method

​

int64

value as [I64]

​

is64

whether value can be represented by int64

​

Decimal

​

coefficient

[BigInt] representing digits

​

coefficient64

[I64] representing digits

​

exponent

Exponent, value of decimal is coefficient * (10 ^ exponent)

​

bigint

Value of decimal as a BigInt

​

int64

Value of decimal as a [I64]

​

float

Value of decimal as a number

​

package.preload

PeerDB offers some preloaded libraries, accessible via require:

library	description
bit32	bit32 API included in Lua 5.2
flatbuffers	flatbuffers API with 64-bit integer support, compatible with Lua generated using our patched flatc
json	JSON encoding/decoding
msgpack	msgpack encoding
utf8	utf8 API included in Lua 5.3
